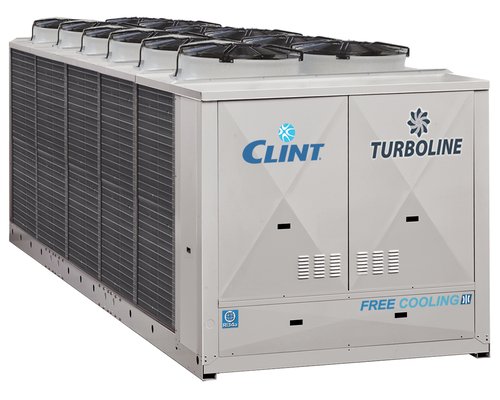

Air cooled liquid chillers Free-Cooling with axial fans, TURBOCOR (magnetic levitation) compressors and flooded shell and tube exchanger

_icona_clint_solo_raffreddamento_2024.png _icona_clint_compressore_turbocor_2024.png _icona_clint_fan_assiale_2024.png _icona_clint_exchanger_shell_and_tube_FL_2024.png _icona_clint_solution_FC_2024.png _icona_clint_solution_web_monitoring_2024.png _icona_clint_refrigerant_R134a_2024.png _icona_clint_refrigerant_R513A_2024.png

The innovative CHA/TTY/FC 1301-1÷5004-1 units, with R134a refrigerant and FREE-COOLING technology, are designed to provide an effective solution to installation requirements of large areas, both commercial and industrial, where the production of chilled water is required in continuous service throughout the year. The unit, designed with specific attention to every aspect of construction and combined with the use of TURBOCOR dynamic partialization oil-free magnetic levitation compressors - managed by the TURBOSOFT self-adaptive electronic control - and with the use of flooded shell and tube evaporator, achieves a high rate of energy efficiency, with unequaled SEPR values, with minimum water content, and an excellent silent functioning. Depending on outside air temperature, the microprocessor controller manages the functioning in CHILLER, FREE-COOLING or MIXED (both CHILLER and FREE-COOLING) mode.
Are available as option the new EC Inverter fans with high available static pressure and efficiency.


The units are compliant to the 2021 ErP Regulation for process cooling application.
On request, units can be supplied with R513A refrigerant.

Versions

  • CHA/TTY/FC - Cooling only

Power range

  • 246-1443 kW
  • 70.0-410 Ton

Features

  • Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
  • Semi-hermetic centrifugal compressors with dual Turbocor turbine, oil free, magnetic rising rotor, thermal protection, continuous capacity adjustment system thanks to built-in INVERTER, automatic anti-cavitation system. The power circuit of the compressor is fitted with a set of electrolytic condensers to control the rising in the event of a power failure, reactor for the power factor correction, EMI filter for electromagnetic compatibility.
  • Axial fans directly coupled to an electric motor with external rotor.
  • Condenser made of copper tubes and aluminium finned coils combined with FREE-COOLING coils.
  • High efficiency flooded shell and tube type evaporator, with one or two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch.
  • Cooling circuit shut-off valves on suction, discharge and liquid line.
  • Electronic expansion valve.
  • Electronic high and low pressure gauges.
  • R134a refrigerant. On request R513A refrigerant.
  • Electrical board includes: main on-off switch with door lock, fuses, electronic/digital overload device to protect the compressors and thermocontacts for fans, interface relay and terminals for external connections.
  • Condensing Control is included: electronic proportional device that ensures efficient and continuous functioning of the unit with outside air temperature down to –20 °C. It also allows to reduce the sound level especially at night. It consists of a fans speed controller with continuous speed regulation, high and low pressure transducers on cooling circuit and an electrical heater on electrical board.
  • TURBOSOFT control and regulation system, equipped with RS485 serial interface, can be supplied with an optional Web Monitoring device for remote monitoring via GPRS/EDGE/3G/TCP-IP network.

Factory fitted accessories

  • IM Automatic circuit breakers
  • RE Adjustable minimum/maximum voltage and phase control relay
  • EC EC Inverter fans
  • ECH EC Inverter fans with high available static pressure
  • TX Coil with pre-coated fins
  • PU Single circulating pump
  • PD Double circulating pump
  • GS Single circulating pump gasket for glycol >30%
  • GD Double circulating pump gaskets for glycol >30%
  • TS Touch Screen Interface
  • WM Web Monitoring - Wireless remote monitoring (GPRS/EDGE/4G/TCP-IP)
  • IST Modbus TCP/IP protocol, Ethernet port
  • ISB BACnet MSTP protocol, RS485 serial interface
  • ISBT BACnet IP protocol, Ethernet port
  • ISB1 BACnet MSTP protocol, RS485 serial interface, BTL certified.
  • ISBT1 BACnet IP protocol, Ethernet port, BTL certified.
  • ISS SNMP protocol, Ethernet port
  • IAV Remote set-point, 0-10V signal
  • IAA Remote set-point, 4-20mA signal
  • IAS Remote signal for second set-point activation
  • IDL Demand limit from digital input
  • CP Potential free contacts
  • MN High and low pressure gauges

Loose accessories

  • CR Remote control panel
  • RP Coils protection metallic guards
  • AG Rubber shock absorbers
  • AM Spring shock absorbers
  • FL Flow switch
1301-11401-11701-12201-12602-13302-14002-14302-14603-14804-15004-1
CoolingCooling capacity (1)kW246281333400495588696869104612291443
Absorbed power (1)kW718094116143171204257307357425
EER (1)3,463,513,543,453,463,443,413,383,413,443,40
Cooling (EN14511)Cooling capacity (1)kW244279331397491582690861103312111421
Absorbed power (1)kW738296119147177210265321375447
EER (1)3,343,403,453,343,343,293,293,253,223,233,18
SEPR (2)7,297,387,077,027,407,197,047,237,047,237,22
Free-Cooling cycleAir temperature (3)°C-2,50,5-2,90,0-2,8-2,3-0,5-0,21,01,01,0
Absorbed power (3)kW10,810,810,814,418,021,621,625,232,436,036,0
CompressorQuantityn°11112222344
Refrigerant circuitsn°11111111111
Capacity stepsn°SteplessSteplessSteplessSteplessSteplessSteplessSteplessSteplessSteplessSteplessStepless
Water circuitWater flowl/s12,6914,5017,1820,6425,5430,3435,9144,8453,9763,4274,46
Pressure dropskPa929788105115155125144220256275
Water connectionsDN100100100125125150150150150200200
Electrical characteristicsPower supplyV/Ph/Hz400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50400/3/50
Max. running currentA1681681682623293375095177636581002
Max. starting currentA25252533186194280288534515773
Unit with pumpPump available static pressurekPa135125115110150140155105160205145
Water connectionsDN100100100125125150150150150200200
Sound pressureSTD version (4)dB(A)6868696969707069707070
WeightsTransport weightkg3040320036003700462051505500770088001000010300
Operating weightkg3180336038103930485054005810808092501048010790

Dimensions

1301-11401-11701-12201-12602-13302-14002-14302-14603-14804-15004-1
LSTDmm40004000500050006200720072008400100501110011100
WSTDmm22002200220022002200220022002200220022002200
HSTDmm23602360236023602360236023602750275027502750

Notes

  • 1 Chilled water (with ethylene glycol at 30%) from 15 to 10 °C, ambient air temperature 35 °C.
  • 2 Seasonal energy efficiency of high temperature process cooling according to EU Regulation No. 2016/2281.
  • 3 Ambient air temperature at wich the cooling capacity indicated in point (1) is reached.
  • 4 Sound pressure level measured in free field conditions at 1 m from the unit. According to ISO 3744.
