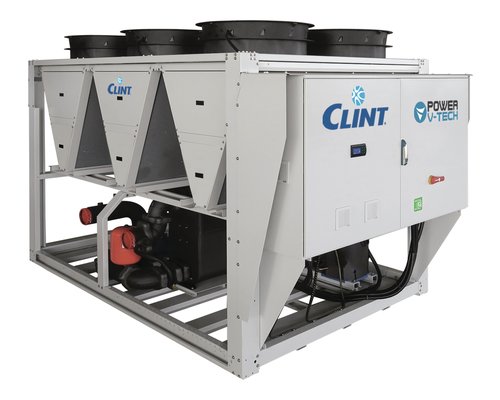

CHV/H/HE/MC 804-P÷2406-P

High efficiency air cooled liquid chillers with axial fans, Scroll compressors and plate exchanger

The high energy efficiency liquid Chillers of the CHV/H/HE/MC 804-P÷2406-P series, with HFO-R1234ze refrigerant, are designed to satisfy the needs of medium and wide-sized service sector or industrial ambients.
They are used, combined with Fan Coil units, for the air conditioning of the rooms or to remove the heat developed during industrial processes.
Microchannel condensing coils on standard version provide higher efficiency levels (EER), as they ensure better heat exchange than conventional coils. Copper/aluminum coils are available on dedicated versions. Inverter control is available, as accessory, on circulating pumps and fans (EC Inverter) for a further efficiency improvement.
The units are characterized by multi-compressor design on double cooling circuit, to reach high energy performances, reduction of current at start-up, elimination of inertial tanks and excellent silent functioning.
Are available as option the new EC Inverter fans with high available static pressure and efficiency.

The units are compliant to the ErP Regulation.

Versions

CHV/H/HE/MC - High efficiency cooling only with MICROCHANNEL condensing coils
CHV/H/HE/MC/SSL - High efficiency super silenced cooling only with MICROCHANNEL condensing coils
CHV/H/HE - High efficiency cooling only with CuAl condensing coils
CHV/H/HE/SSL - High efficiency super silenced cooling only with CuAl condensing coils

Power range

213-600 kW
61.0-171 Ton

Features

Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
Axial fans directly coupled to a three-phase electric motor with external rotor. A safety fan guard is fitted on the air flow discharge. They are also fitted with an electronic proportional device for continuous and efficient operation of the unit with an outdoor air temperature as low as -20 °C in cooling. It also allows to reduce the sound level, especially at night.
Condenser made of aluminum MICROCHANNEL coils or copper tube and aluminum finned coils.
Evaporator AISI 316 stainless steel braze welded plates type with two independent circuits on the refrigerant side and one on the water side, complete with water differential pressure switch.
Cooling circuit shut-off valve on liquid line.
Electronic expansion valve.
Electronic high and low pressure gauges.
HFO-R1234ze refrigerant.
Electrical board includes: main switch with door safety interlock, fuses or magnetothermic switches, thermal protection relays for compressors and thermocontacts for fans.
Microprocessor control and regulation system.
Units can be selected in standard, silenced and super-silenced versions. The super-silenced version includes: reduced fans speed: to guarantee the same cooling capacity compared to the standard version, the SSL version can include an increased number of modules; soundproofing enclosure for compressors: consisting of an external galvanised sheet metal enclosure, painted and internally coated with soundproofing material.

Accessories

Factory fitted accessories

IM Automatic circuit breakers
RE Adjustable minimum/maximum voltage and phase control relay
SL Unit silencement
RFM Cooling circuit shut-off valve on discharge line
DSV Double relief safety valve with changeover switch on the high pressure side for each refrigerant circuit
DSVHL Double relief safety valve with changeover switch on the high and on the low pressure side of each refrigerant circuit
BT Low water temperature kit
EC EC Inverter fans
ECH EC Inverter fans with high available static pressure
TXB Coil with epoxy treatment
TX Coil with pre-coated fins
EWR Right-side external water connections
EWB External water connections on rear side
PS Single circulating pump
PSI Inverter single circulating pump
PD Double circulating pump
PDI Inverter double circulating pump
GS Single circulating pump gasket for glycol >30%
GD Double circulating pump gaskets for glycol >30%
FE Antifreeze heater for evaporator
FN Antifreeze heater for pipes
FG Antifreeze heater for single pump and pipes
FM Antifreeze heater for double pump and pipes
SS Soft start
WM Web Monitoring - Wireless remote monitoring (GPRS/EDGE/4G/TCP-IP)
IS Modbus RTU protocol, RS485 serial interface
IST Modbus TCP/IP protocol, Ethernet port
ISB BACnet MSTP protocol, RS485 serial interface
ISBT BACnet IP protocol, Ethernet port
ISB1 BACnet MSTP protocol, RS485 serial interface, BTL certified.
ISBT1 BACnet IP protocol, Ethernet port, BTL certified.
ISS SNMP protocol, Ethernet port
IAV Remote set-point, 0-10V signal
IAA Remote set-point, 4-20mA signal
IAS Remote signal for second set-point activation
IDL Demand limit from digital input
CP Potential free contacts
GDS Leak detector
MN High and low pressure gauges

Loose accessories

CR Remote control panel
AG Rubber shock absorbers
AM Spring shock absorbers

Technical data

			804-P	1004-P	1204-P	1604-P	1806-P	2406-P
Cooling MC version	Cooling capacity (1)	kW	213	260	322	402	487	600
	Absorbed power (1)	kW	67,0	80,0	103	126	154	189
	EER (1)		3,18	3,25	3,13	3,19	3,16	3,17
Cooling MC version (EN14511)	Cooling capacity (1)	kW	213	260	322	402	487	600
	Absorbed power (1)	kW	67,4	80,5	104	127	155	190
	EER (1)		3,16	3,23	3,10	3,17	3,14	3,15
	SEER (2)		4,51	4,56	4,48	4,61	4,71	4,72
	Energy Efficiency (2)	%	177	179	176	181	185	186
Cooling CuAl version	Cooling capacity (1)	kW	212	258	318	399	485	598
	Absorbed power (1)	kW	68,0	81,0	105	128	155	191
	EER (1)		3,12	3,18	3,04	3,13	3,12	3,12
Cooling CuAl version (EN14511)	Cooling capacity (1)	kW	212	258	318	399	485	597
	Absorbed power (1)	kW	68,4	81,5	105	128	156	192
	EER (1)		3,09	3,16	3,01	3,11	3,10	3,10
	SEER (2)		4,43	4,48	4,40	4,53	4,65	4,65
	Energy Efficiency (2)	%	174	176	173	178	183	183
Compressor	Quantity	n°	2+2	2+2	2+2	2+2	3+3	3+3
	Refrigerant circuits	n°	2	2	2	2	2	2
	Capacity steps	n°	4	4	4	4	6	6
	Unitary absorbed power	kW	15,3	17,8	23,5	28,6	23,2	28,6
Evaporator	Water flow	l/s	10,15	12,39	15,35	19,16	23,21	28,60
	Pressure drops	kPa	17	18	18	19	19	21
	Water connections	DN	100	100	100	150	150	150
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
	Max. running current	A	175	146	183	232	275	349
	Max. starting current	A	373	442	504	651	643	819
Unit with pump	Pump available static pressure	kPa	129	118	119	110	140	116
Unit with pump	Water connections	DN	100	100	100	150	150	150
ECH fan available static pressure	MC version	Pa	70	75	75	75	75	70
Sound pressure	MC version (3)	dB(A)	71	73	74	76	75	76
	MC version with SL accessory (3)	dB(A)	68	70	71	73	72	73
	MC/SSL version (3)	dB(A)	62	64	66	67	66	68
Weights MC versions	Transport weight	kg	2376	3049	3240	3998	5035	5866
Weights MC versions	Operating weight	kg	2420	3100	3300	4080	5160	5980

Dimensions

			804-P	1004-P	1204-P	1604-P	1806-P	2406-P
L	MC-CuAl	mm	3150	4500	4500	5850	7200	8550
L	MC/SSL-CuAl/SSL	mm	4500	5850	5850	7200	8550	9900
W	MC-CuAl-MC/SSL- CuAl/SSL	mm	2250	2250	2250	2250	2250	2250
H	MC-CuAl-MC/SSL- CuAl/SSL	mm	2550	2550	2550	2550	2550	2550

Notes

1 Chilled water from 12 to 7 °C, ambient air temperature 35 °C.
2 Seasonal energy efficiency of cooling at low temperature. According to EU Regulation n. 2016/2281.
3 Sound pressure level measured in free field conditions at 1 m from the unit. According to ISO 3744.
N.B. (1) Weights of SSL versions are specified on technical brochure.
N.B. (2) Data of CuAl versions are specified on technical brochure.
