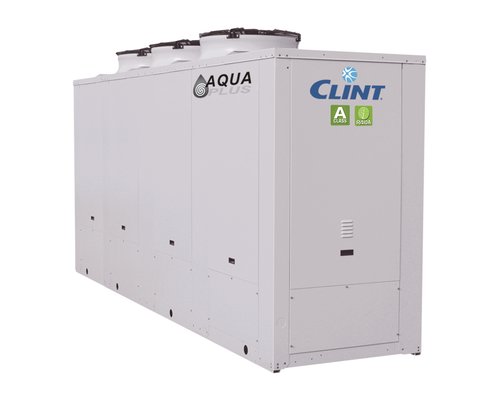

CHA/K/AF 182-P÷604-P

High efficiency air cooled liquid Chillers and Heat Pumps with axial fans, Scroll compressors and plate exchanger


The high efficiency liquid Chillers and Heat Pumps of the CHA/K/AF 182-P÷604-P series, with R410A refrigerant, are designed for medium-sized service sector or industrial ambients.
They are used, combined with Fan Coil units, for the air conditioning or heating of the rooms or to remove the heat developed during industrial processes. They can be supplied with Modbus RTU protocol through RS485 serial interface.
Equipped with axial fans, Scroll compressors and plate exchanger, even in the super silent version, these units can be completed by a hydraulic circuit with tank, with pump, with tank and pump.
Are available as option the new EC Inverter fans with high available static pressure and efficiency for indoor ducted installation.

The units are compliant to the ErP Regulation.
On request, units can be supplied with R452B or R454B refrigerant.

Versions

CHA/K/AF - Cooling only
CHA/K/AF/WP - Reversible Heat Pump
CHA/K/AF/SSL - Super silenced cooling only
CHA/K/AF/WP/SSL - Super silenced reversible Heat Pump

Power range

51.0-183 kW
15.0-52.0 Ton

Features

Structure with supporting frame, made of galvanised sheet metal with additional protection provided by polyester powder coating.
Scroll compressors with oil sight glass, internal overheat protection and crankcase heater.
Axial fans directly coupled to an electric motor with external rotor.
Condenser made of copper tubes and aluminium finned coil.
Evaporator AISI 316 stainless steel braze welded plates type with one circuit on the refrigerant side and one on the water side in 182-P÷453-P models; with two independent circuits on the refrigerant side and one on the water side in 524-P÷604-P models, complete with water differential pressure switch. On the Heat Pump units it is always installed an antifreeze heater.
R410A refrigerant. On request R452B or R454B refrigerant.
Electrical board includes: main switch with door safety interlock, fuses, thermal protection relays for compressors and thermocontacts for fans.
Functioning in heating mode with outside air temperature down to -15 °C.
Microprocessor control and regulation system.

Accessories

Factory fitted accessories

IM Automatic circuit breakers
RE Adjustable minimum/maximum voltage and phase control relay
SL Unit silencement
RFM Cooling circuit shut-off valve on discharge line
RFL Cooling circuit shut-off valve on liquid line
CT Condensing control down to 0 °C
CC Condensing control down to -20 °C
BT Low water temperature kit
EC EC Inverter fans
ECH EC Inverter fans with high available static pressure
DS Desuperheater
RT Total heat recovery
TX Coil with pre-coated fins
SI Inertial tank
PS Single circulating pump
PSI Inverter single circulating pump
PD Double circulating pump
PDI Inverter double circulating pump
GS Single circulating pump gasket for glycol >30%
GD Double circulating pump gaskets for glycol >30%
FE Antifreeze heater for evaporator
FA Antifreeze heater for tank
SS Soft start
IS Modbus RTU protocol, RS485 serial interface
IAV Remote set-point, 0-10V signal
IAA Remote set-point, 4-20mA signal
IAS Remote signal for second set-point activation
IDL Demand limit from digital input
HYM Hybrid systems management
DHW Domestic hot water management
MN High and low pressure gauges

Loose accessories

CR Remote control panel
RP Coils protection metallic guards
AG Rubber shock absorbers
AM Spring shock absorbers

Technical data

			182-P	202-P	242-P	262-P	302-P	363-P	393-P	453-P	524-P	604-P
Cooling	Cooling capacity (1)	kW	51,1	59,1	67,2	76,6	87,9	100	115	133	156	183
	Absorbed power (1)	kW	16,0	18,5	20,9	24,2	27,6	31,0	35,8	41,5	48,3	56,9
	EER (1)		3,19	3,19	3,22	3,17	3,18	3,23	3,21	3,20	3,23	3,22
Cooling (EN14511)	Cooling capacity (1)	kW	51,0	58,9	67,1	76,4	87,6	99,7	115	133	156	183
	Absorbed power (1)	kW	16,3	18,8	21,2	24,6	28,1	31,5	36,3	42,2	48,9	57,5
	EER (1)		3,13	3,14	3,17	3,11	3,12	3,17	3,16	3,14	3,18	3,18
	SEER (2)		4,17	4,21	4,20	4,19	4,19	4,22	4,25	4,16	4,16	4,18
	Energy Efficiency (2)	%	164	165	165	165	165	166	167	163	163	164
Heating (EN14511)	Energy Efficiency (3)	%	131	130	129	134	135	131	132	131	130	130
	Heating capacity (4)	kW	55,6	64,3	73,1	83,4	95,7	109	124	144	169	198
	Absorbed power (4)	kW	17,2	19,8	22,4	25,9	29,5	33,2	38,3	44,2	51,7	60,5
	COP (4)		3,24	3,25	3,27	3,22	3,25	3,30	3,24	3,26	3,27	3,28
	SCOP (3)		3,36	3,32	3,31	3,43	3,45	3,35	3,37	3,34	3,33	3,32
	Energy Class (5)		A+	A+	A+	A+	-	-	-	-	-	-
Heating	Heating capacity (4)	kW	55,4	64,1	72,9	83,1	95,3	109	124	144	169	198
	Absorbed power (4)	kW	16,8	19,4	22,0	25,4	28,8	32,5	37,7	43,4	51,0	59,7
	COP (4)		3,30	3,30	3,31	3,27	3,31	3,35	3,29	3,32	3,31	3,32
Compressor	Quantity	n°	2	2	2	2	2	3	3	3	4	4
	Refrigerant circuits	n°	1	1	1	1	1	1	1	1	2	2
	Capacity steps	n°	2	2	2	2	2	3	3	3	4	4
Evaporator	Water flow	l/s	2,44	2,82	3,20	3,65	4,19	4,77	5,48	6,34	7,44	8,72
	Pressure drops	kPa	43	42	33	41	49	42	37	46	35	31
	Water connections	"G	1 ½"	1 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"
Electrical characteristics	Power supply	V/Ph/Hz	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50	400/3/50
	Max. running current	A	41	44	55	60	67	79	90	101	120	135
	Max. starting current	A	164	166	179	192	235	202	222	268	252	302
Unit with tank and pump	Pump available static pressure	kPa	140	135	135	120	130	180	175	160	160	150
	Tank water volume	l	400	400	400	400	400	400	400	400	600	600
	Water connections	"G	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"	2 ½"
ECH fan available static pressure	STD versions	Pa	70	60	100	80	75	80	80	80	75	65
ECH fan available static pressure	SSL versions	Pa	70	60	95	90	80	80	80	80	---	---
Sound pressure	STD versions (6)	dB(A)	63	64	66	66	67	67	67	68	68	68
Sound pressure	With SL accessory (6)	dB(A)	61	62	64	64	65	65	65	66	66	66
Weights	Transport weight (7)	kg	574	606	625	679	728	836	973	1015	1305	1367
Weights	Operating weight (7)	kg	576	612	630	684	734	842	981	1022	1314	1376

Dimensions

			182-P	202-P	242-P	262-P	302-P	363-P	393-P	453-P	524-P	604-P
L	STD	mm	2350	2350	2350	2350	2350	3550	3550	3550	4700	4700
L	SSL	mm	2350	2350	2350	3550	3550	3550	4700	4700	---	---
W	STD-SSL	mm	1100	1100	1100	1100	1100	1100	1100	1100	1100	1100
H	STD	mm	1950	2250	2250	2250	2250	1950	2250	2250	2250	2250
H	SSL	mm	1950	2250	2250	1950	1950	2250	2250	2250	---	---

Notes

1 Chilled water from 12 to 7 °C, ambient air temperature 35 °C.
2 Seasonal energy efficiency of cooling at low temperature. According to EU Regulation n. 2016/2281.
3 Seasonal energy efficiency of heating at low temperature with average climatic conditions. According to EU Regulation n. 813/2013.
4 Heated water from 40 to 45 °C, ambient air temperature 7 °C d.b./6 °C w.b.
5 Seasonal energy efficiency class of heating at low temperature with average climatic conditions. According to EU Regulation n. 811/2013.
6 Sound pressure level measured in free field conditions at 1 m from the unit. According to ISO 3744.
7 Unit without tank and pump.
N.B. (1) Weights of SSL and WP versions are specified on technical brochure.
